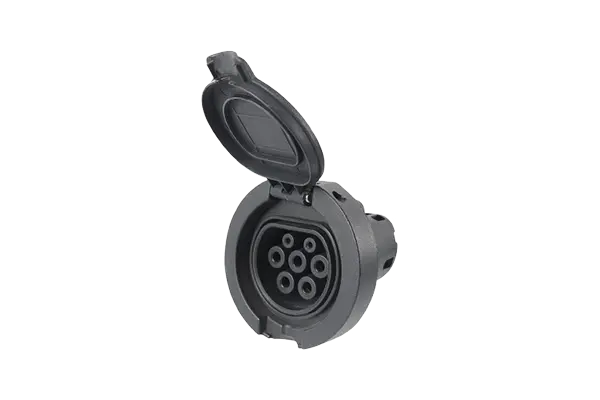

Meet IEC 62196-2 regulations and requirements
Rear mounted, Terminal crimping
Clamshell protective cover
Degrees of protection: IP54 (working condition)
Mechanical PerformanceMechanical lifespan: no-load plug in/withdraw＞10000 times
Coupled insertion force: ＜100N
Environmental PerformanceOperating temperature: -30°C~+50°C
Applied MaterialsCase Material: Thermoplastic, flame retardant grade UL94 V-0
Contact Sleeve: Copper alloy, silver plated
Reliable materials, flame-retardant, pressure-resistant, wear-resistant, impact-resistant, oil-resistant
Electrical PerformanceRated current: 16A/20A/32A/50A
Operation voltage: 250V/415V AC
Insulation resistance: ＞100MΩ(DC 1000V/1minute)
Terminal temperature rise: ＜50K
Withstand Voltage: 2500V AC/1minute
Contact Resistance: 0.5mΩ Max
Model | Rated current | Cable specification |
|---|---|---|
V4-DSIEC2a-G-EV16S | 16ASingle phase | 3×2.5mm²+2×0.75mm |
16AThree phase | 5×2.5mm²+2×0.75mm | |
V4-DSIEC2a-G-EV32S | 32ASingle phase | 3×6mm²+2×0.75mm |
32AThree phase | 5×6mm²+2×0.75mm | |
V4-DSIEC2a-G-EV50S | 50AThree phase | 5×10mm²+2×0.75mm |
