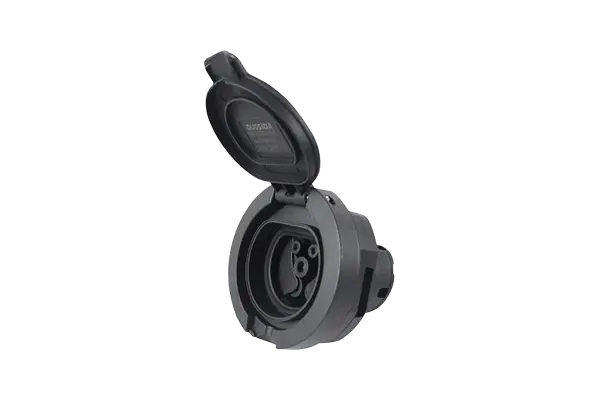

Meet IEC 62196-2 regulations and requirements
Rear mounted, Terminal crimping
With shutter and cover
Degrees of protection: IP55 (working condition)
Mechanical PerformanceMechanical lifespan: no-load plug in/withdraw＞10000 times
Coupled insertion force:＜100N
Environmental PerformanceOperating temperature: -30°C~+50°C
Applied MaterialsSeat Shell: Thermoplastic
Terminal: Copper alloy, silver plated
Inner Core: Thermoplastic
Electrical PerformanceRated current: 16A/32A/50A/63A
Operation voltage: 250V/415V AC
Insulation resistance: ＞100MΩ(DC 1000V/1minute)
Terminal temperature rise: ＜50K
Withstand Voltage: 2500V AC/1minute
Contact Resistance: 0.5mΩ Max
Model | Rated current | Cable specification |
|---|---|---|
V5-DSIEC2a-GEL-EV16S | 16ASingle phase | 3×2.5mm²+2×0.75mm² |
16AThree phase | 5×2.5mm²+2×0.75mm² | |
V5-DSIEC2a-GEL-EV32S | 32ASingle phase | 3×6mm²+2×0.75mm² |
32AThree phase | 5×6mm²+2×0.75mm² | |
V5-DSIEC2a-GEL-EV50S | 50AThree phase | 5×10mm²+2×0.75mm² |
V5-DSIEC2a-GEL-EV63S | 63AThree phase | 5×16mm²+2×0.75mm² |
