Applied MaterialsCase Material: Thermoplastic, flame retardant grade UL94 V-0
Contact Sleeve:Copper alloy,silver plated
Environmental PerformanceOperating temperature: -30℃~+50℃
Mechanical PerformanceMachanical lifespan: no-load plug in/withdraw＞10000 times
Coupled insertion force:＞45N＜100N
Impact resistance: withstands 1m drop and 2-ton run-over
Electrical PerformanceRated current:16A/32A/40A/50A
Operation voltage:240V
Insulation resistance:＞100MΩ(DC 1000V/1minute)
Terminal temperature rise:＜50K
Withstand Voltage: 2500V AC/1minute
Contact Resistance: 0.5mΩ Max
| Model | Rated current | Cable specification |
|---|---|---|
| V3-DSS-EV16P | 16A | 3×14AWG+1×18AWG |
| V3-DSS-EV32P | 32A | 3×10AWG+1×18AWG |
| V3-DSS-EV40P | 40A | 2×8AWG+1×10AWG+1×16AWG |
| 1-V3-DSS-EV40P | 40A | 3×9AWG+1×16AWG |
| V3-DSS-EV50P | 50A | 2×8AWG+1×10AWG+1×16AWG |

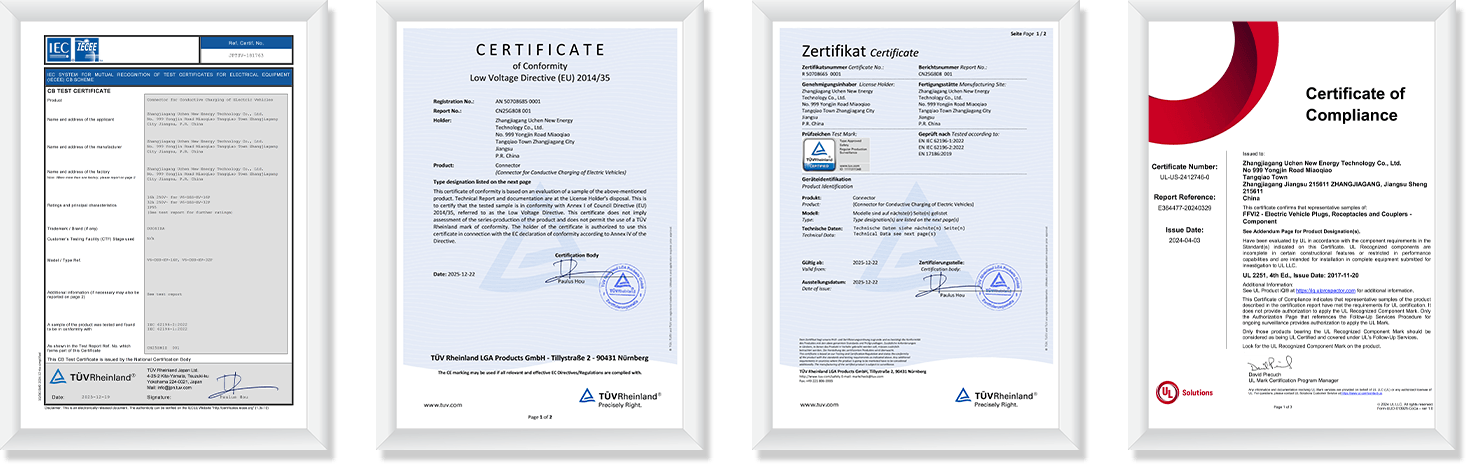

Relying on self-developed leading intelligent charging regulation technology and multiple safety protection systems, it fully safeguards your charging experience. The products have passed multiple global authoritative certifications
