Applied MaterialsCase Material: Thermoplastic, flame retardant grade UL94 V-0
Contact Sleeve: Copper alloy, silver plated
Environmental PerformanceOperating temperature: -30℃~+50℃
Mechanical PerformanceMachanical lifespan: no-load plug in/withdraw＞10000 times
Coupled insertion force:＜100N
Impact resistance: withstands 1m drop and 2-ton run-over
Electrical PerformanceRated current: 80A/150A/200A
Operation voltage: 1000V/DC
Insulation resistance: ＞100MΩ(DC 1000V/1minute)
Terminal temperature rise:＜50K
Withstand Voltage: 3000V AC/1minute
Contact Resistance: 0.5mΩ Max
| Model | Rated current | Cable specification |
|---|---|---|
| DSIEC3J-EV80P | 80A | 2×5AWG+1×8AWG+6×20AWG |
| DSIEC3J-EV150P | 150A | 2×1AWG+1×6AWG+6×20AWG |
| DSIEC3J-EV200P | 200A | 2×2/0AWG+1×6AWG+6×20AWG |

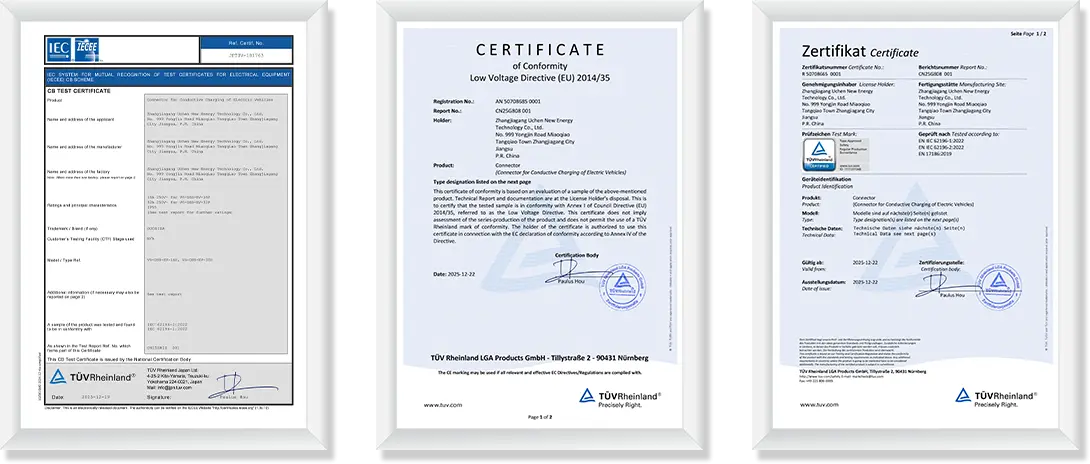

Relying on self-developed leading intelligent charging regulation technology and multiple safety protection systems, it fully safeguards your charging experience. The products have passed multiple global authoritative certifications
