Complies with UL2594 and UL2231 regulations and requirements
Vehicle connector meet SAE J1772 regulations and requirements
Power pulg meet NEMA-WD6 regulations and requirements
Degrees of protection: control box TYPE4
Machanical PerformanceMachanical lifespan: no-load plug in/withdraw >10000 times
Impact resistance: withstands 1m drop and 2-ton run-over
Environmtal PerformanceOperating temperature: -30°C~+50°C
Applied MaterialsCase Material: Thermoplastic, flame retardant grade UL94 V-0
Pin: Copper alloy, Copper alloy, silver plated,with thermoplastic tip
Electrical PerformanceRated current: 40A
Operation voltage: 240V AC
Insulation resistance: >100MΩ(DC 1000V/1minute)
Terminal temperature rise: <50K
Withstand Voltage: 2500V AC/1minute
Contact Resistance: 0.5mΩ Max
Control Box FunctionLeakage protection
Overvoltage under-voltage protection (self-checking recover)
Overload over temperature protection (self check recovery)
Surge protection
Lightning protection
| Model | Rated Current | Cable Specification |
|---|---|---|
| UPSE-40-XC-AS | 40A | 3×9 AWG + 1×16 AWG |

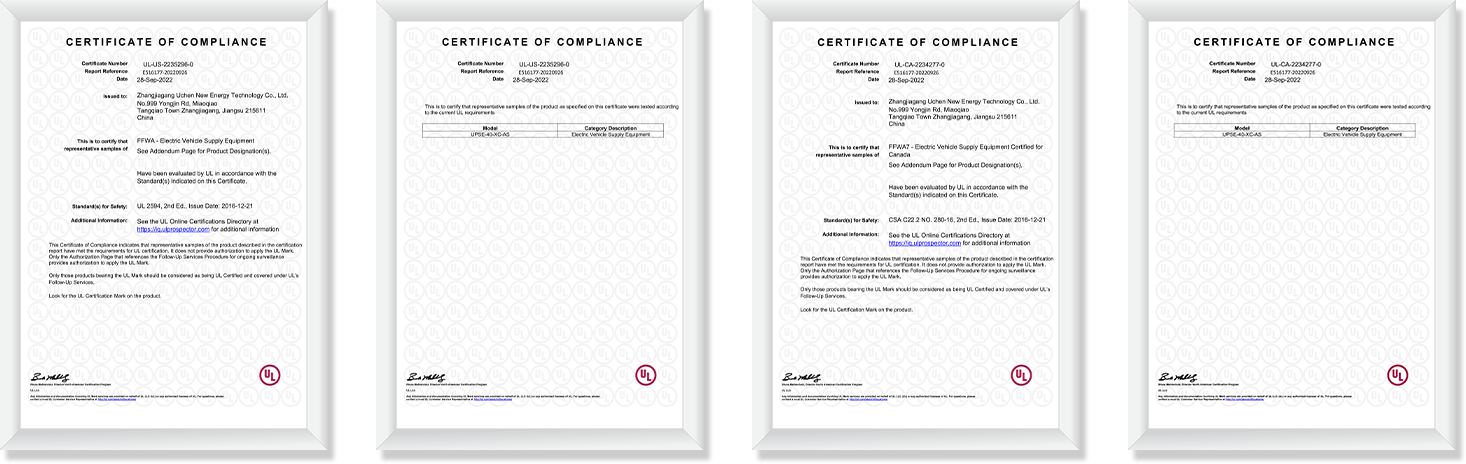

Relying on self-developed leading intelligent charging regulation technology and multiple safety protection systems, it fully safeguards your charging experience. The products have passed multiple global authoritative certifications
