CHARGING MODE 3 CONNEVTION METHOD B2 TYPE 2 16A/32A, 250V/415V
Electric Connection Between Charger and Vehicle
Features
Meet IEC 62196-2 regulations and requirements
Product assembly meet IEC 61851-1 charging mode 3
Elegant appearance, ergonomic design, easy to use
Degrees of protection: IP55 (working condition)
Machanical Performance-
Machanical lifespan: no-load plug in/withdraw >10000 times
Impact resistance: withstands 1m drop and 2-ton run-over
Environmtal Performance-
Operating temperature: -30°C~+50°C
Applied Materials-
Case Material: Thermoplastic, flame retardant grade UL94 V-0
Contact Sleeve: Copper alloy, silver plated
Reliable materials, flame-retardant, pressure-resistant, wear-resistant, impact-resistant, oil-resistant
Electrical Performance-
Rated current: 16A/32A
Operation voltage: 250V/415V
Insulation resistance: >100MΩ(DC 1000V/1 minute)
Terminal temperature rise: <50K
Withstand Voltage: 2500V AC/1 minute
Contact Resistance: 0.5mΩ Max
Model selection and standard Cable
| Model | Rated Current | Cable Specification |
|---|---|---|
| 2080-2090-16-XC | 16A/Single phase | 3×2.5mm²+2×0.5mm²(TPE)/3×2.5mm²+1×0.75mm²(TPU) |
| 16A/Three phase | 5×2.5mm²+2×0.5mm²(TPE)/5×2.5mm²+1×0.75mm²(TPU) | |
| 2080-2090-32-XC | 32A/Single phase | 3×6mm²+2×0.5mm²(TPE)/3×6mm²+1×0.75mm²(TPU) |
| 32A/Three phase | 5×6mm²+2×0.5mm²(TPE)/5×6mm²+1×0.75mm²(TPU) |

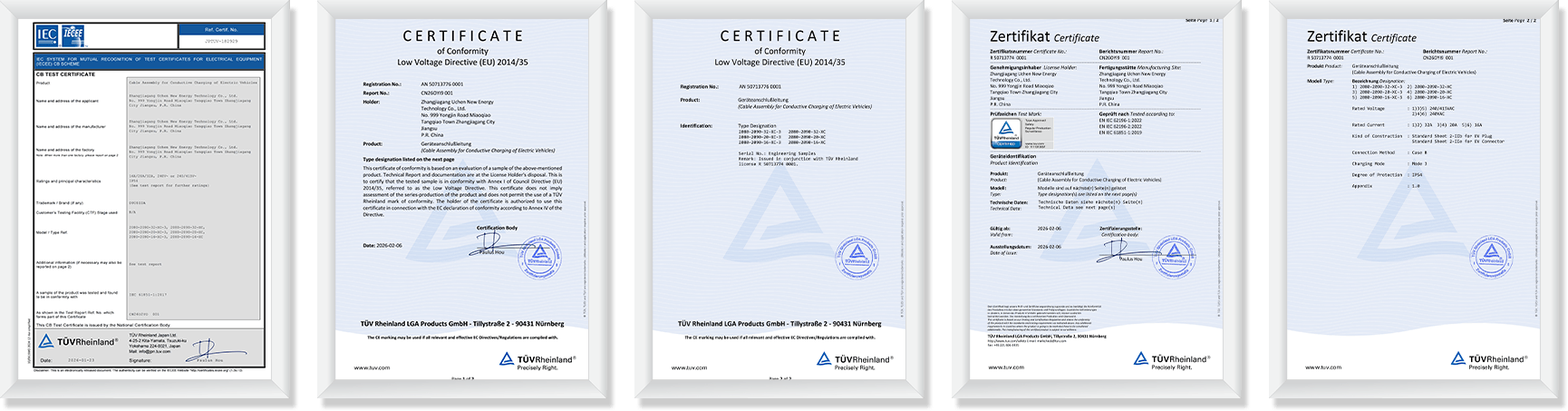

Certificate of Registration
