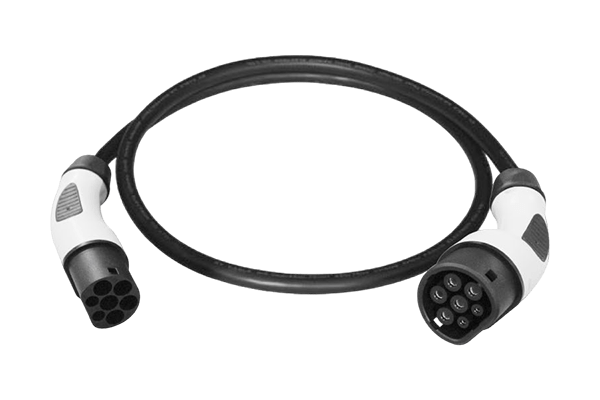

CHARGING MODE 3 CONNEVTION METHOD B2 TYPE 1 16A/32A, 250V

Electric Connection Between Charger and Vehicle

Features

Machanical Performance

Machanical lifespan: no-load plug in/withdraw >10000 times

Impact resistance: withstands 1m drop and 2-ton run-over

Applied Materials

Case Material: Thermoplastic, flame retardant grade UL94 V-0

Contact Sleeve: Copper alloy, silver plated

Reliable materials, flame-retardant, pressure-resistant, wear-resistant, impact-resistant, oil-resistant

Electrical Performance

Rated current: 16A/32A

Operation voltage: 250V

Insulation resistance: >100MΩ(DC 1000V/1 minute)

Terminal temperature rise: <50K

Withstand Voltage: 2500V AC/1 minute

Contact Resistance: 0.5mΩ Max

Model	Rated Current	Cable Specification
2010-3030-16-XC	16A	3×2.5mm²+2×0.5mm²(TPE)/3×2.5mm²+1×0.75mm²(TPU)
2010-3030-32-XC	32A	3×6mm²+2×0.5mm²(TPE)/3×6mm²+1×0.75mm²(TPU)
