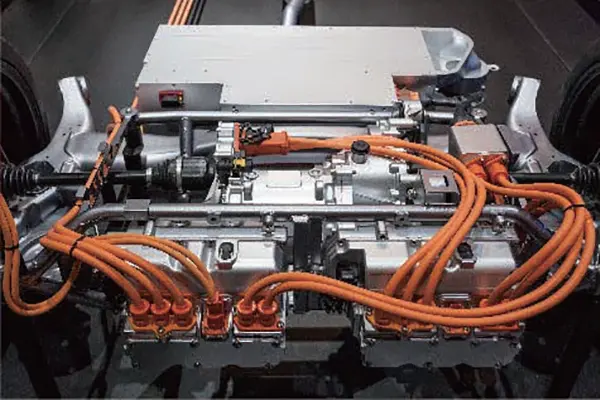

Application: For connection between automotive high voltage components including battery, motor controller, motor, A/C, DC/DC, charger
Highly waterproof, anti-corrosion and anti-aging properties
Excellent EMI (shielding) structure
Degrees of protection: IP67
Technical ParameterHigh voltage resistance: 2000V AC 60S
Temperature: 80°C
Electrical shielding
Time: 500H
X,Y,Z three-way vibration frequency: 10-2000Hz, 196m/s²
Disconnect: ≤1us
Electrical PerformanceRated voltage: 1000V DC
Rated current: 250A (Max)
Insulation impedance: >500MΩ
Insulation withstand voltage: 3000V AC
Temperature rise: ≤50K
Shielding efficiency: 360° Shielding
Mechanical PerformanceWiring range: 2.5mm²-120mm²
Crimping method: ultrasonic welding, hexagonal cold crimping
Environmental PerformanceOperating temperature: -40℃~+125℃
Relative humidity: 90%-95%
