Start method: plug and charge, RFID card, APP
Remind function: charge indication, fault indication
Self-test function: fault self-positioning
Technical SpecificationsInstallation method: stake-type / wall-mounted
Maximum power: 22KW (Three phase),11KW (Three phase), 7KW (Single phase)
Communication interface: 4G/WiFi/LAN/Bluetooth
Safety specifications: Conforms to the latest IEC 61851-1 standards
EMC Directive (2014/30/EU), Low Voltage Directive (2014/35/EC), RED Directive (2014/53/EC), RoHS Directive (2011/65/EC), WEEE Directive (2012/19/EU)
Operating temperature: -30℃~+50℃
Output TypeIEC 62196 Type1 and Type2
7KW: 230VAC@32A
11KW: 400VAC@16A
22KW: 400VAC@32A
SecurityLeakage detection and protection
Double leakage protection (software and hardware)
Emergency stop button protection
Over-current, over-voltage, under-vltage, over-temperature protection
Power failure data records
Surge protection meets latest EN 61851 & GB/T 18487 standards
Electromagnetic compatibility complies with the latest EN 61851 & GB/T 18487 standards
Outdoor protection: IP55 waterproof rating

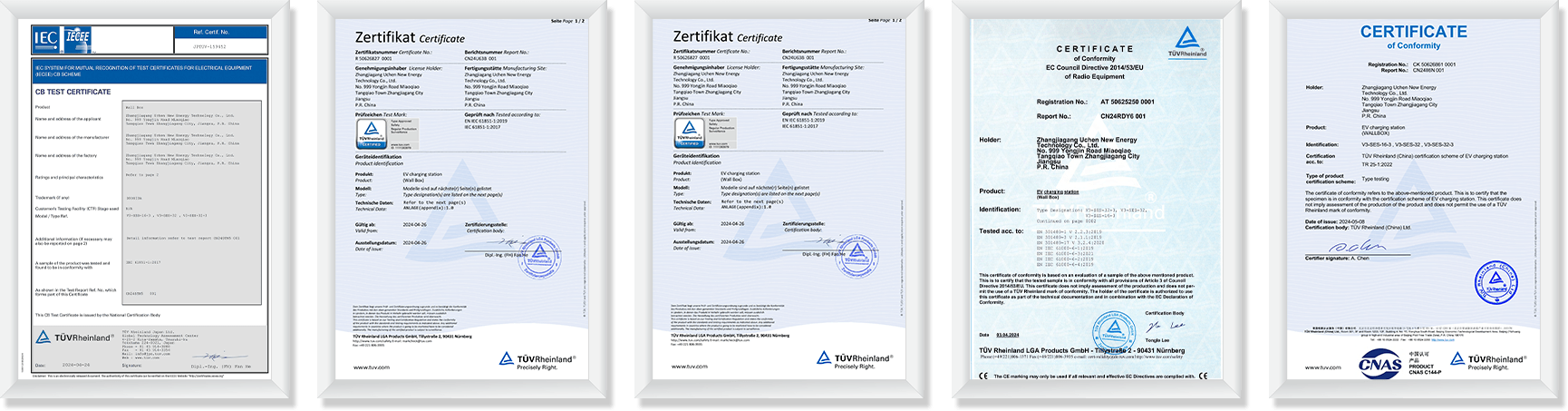

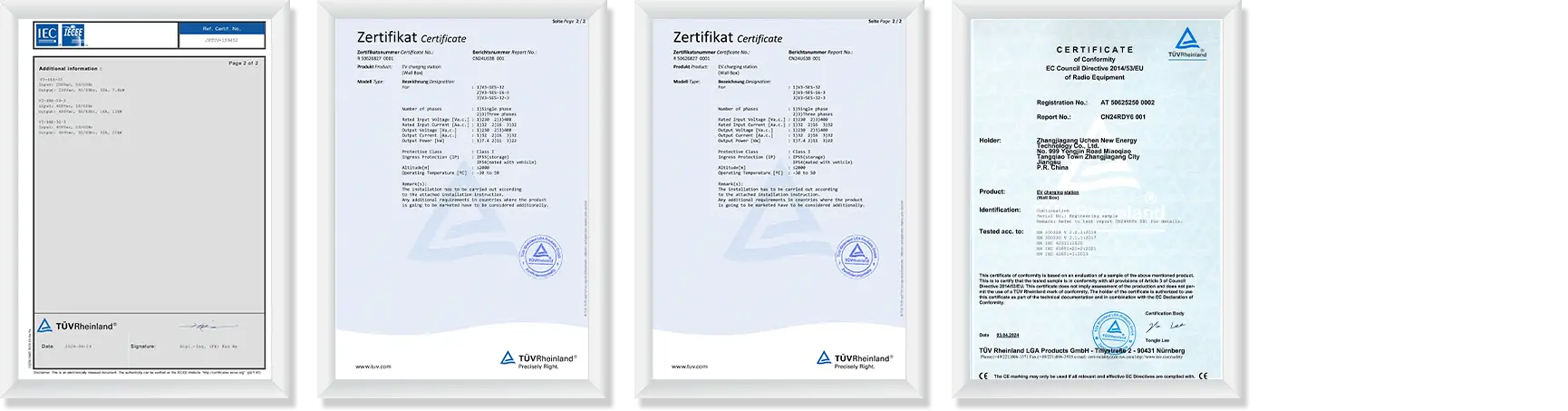

Relying on self-developed leading intelligent charging regulation technology and multiple safety protection systems, it fully safeguards your charging experience. The products have passed multiple global authoritative certifications...
