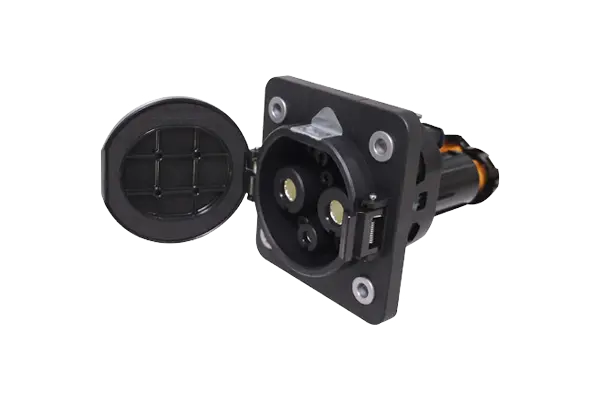

GB/T DC VEHICLE INLET (Rated Current: 300A/400A/500A)
Electric vehicle connection
Features
Meet GB/T20234-2023 regulations and requirements
Front installed
Clamshell protective cover
Degrees of protection: IP54; IP55 (Working Condition)
Mechanical Performance- Mechanical Performance
Environmental Performance-
Operating temperature: -30°C~+50°C
Applied Materials-
Case Material: Thermoplastic, flame retardant grade UL94 V-0
Contact Sleeve: Copper alloy, silver plated
Reliable materials, flame-retardant, pressure-resistant, wear-resistant, impact-resistant, oil-resistant
Electrical Performance-
Rated current: 300A/400A/500A
Operation voltage: 1000V/DC
Insulation resistance: ＞100MΩ(DC 1000V/1minute)
Terminal temperature rise: ＜50K
Withstand Voltage: 3000V AC/1minute
Contact Resistance: 0.5mΩ Max
Model selection and standard Cable
Model | Rated current | Cable specification |
|---|---|---|
V5-DSD-G-EV-300S | 300A | 2*70mm²+1*25/16/10/6mm²+8*0.5mm² |
V5-DSD-G-EV-400S | 400A | 2*95mm²+1*25/16/10/6mm²+8*0.5mm² |
V5-DSD-G-EV-500S | 500A | 2*120mm²+1*25/16/10/6mm²+8*0.5mm² |
