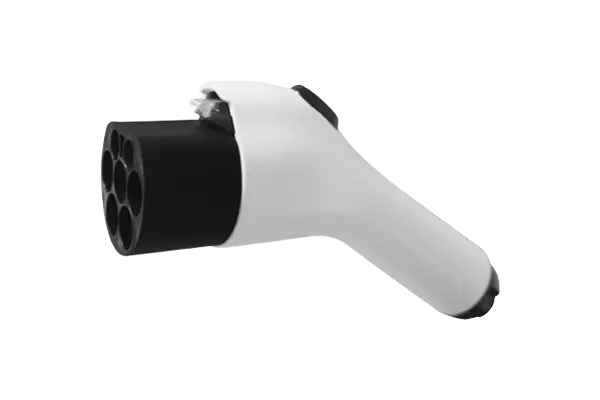

GB/T AC VEHICLE CONNECTOR (Rated Current: 16A/32A)

Electric vehicle connection

Features

Mechanical Performance

Mechanical lifespan: no-load plug in/withdraw＞10000 times

Coupled insertion force: ＜100N

Impact resistance: withstands 1m drop and 2-ton run-over

Applied Materials

Case Material: Thermoplastic, flame retardant grade UL94 V-0

Pin: Copper alloy, Copper alloy, silver plated,with thermoplastic tip

Terminals with thermoplastic tip to prevent accidental contact

Electrical Performance

Rated current: 16A/32A

Operation voltage: 250V

Insulation resistance: ＞100MΩ(DC 1000V/1minute)

Terminal temperature rise: ＜50K

Withstand Voltage: 2500V AC/1minute

Contact Resistance: 0.5mΩ Max

Model	Rated current	Cable specification
V9C-DSI-EV16P	16A	3×2.5mm²+1×0.75mm²
V9C-DSI-EV32P	32A	3×6mm²+3×0.75mm²
