Meet North American Charging Standard TS-0023666 regulations and requirements
NACS extension cords
Degrees of protection: Plug end IP65, Socket end IP55 (working condition)
Mechanical ProertiesMachanical lifespan: no-load plug in/withdraw＞10000 times
Coupled insertion force: 45N＜F＜80N
Environmtal PerformanceOperating temperature: -30℃~+50℃
Applied MaterialsCase Material: Thermoplastic, flame retardant grade UL94 V-0
Electrical PerformanceRated current: 50A
Operation voltage: 250V
Insulation resistance: ＞100MΩ(DC 500V)
Terminal temperature rise:＜50K
Withstand Voltage: 2000V AC/5S
Contact Resistance: 0.5mΩ Max

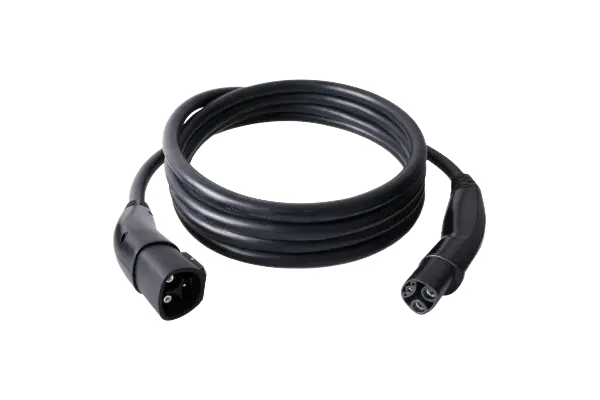

| Model | Rated Current | Cable Specification |
|---|---|---|
| V3-DST-EV-50P | 50A (UL line) | 2×8AWG+1×10AWG+2×16AWG |
Relying on self-developed leading intelligent charging regulation technology and multiple safety protection systems, it fully safeguards your charging experience. The products have passed multiple global authoritative certifications
Relying on self-developed leading intelligent charging regulation technology and multiple safety protection systems, it fully safeguards your charging experience. The products have passed multiple global authoritative certifications
Relying on self-developed leading intelligent charging regulation technology and multiple safety protection systems, it fully safeguards your charging experience. The products have passed multiple global authoritative certifications
